Angles of this series: 30 degrees, 45 degrees, 60 degrees, 90 degrees and 100 degrees
Angle: 100 degrees
Match: 12MM lens
Diameter: 17MM
Height: 10MM
Diameter with bracket: 19MM
Height with bracket: 13.5MM
Lens material: optical grade PMMA
Support material: PC material
Temperature resistance: -40-+100 degrees
Applicable infrared LED: 5050 infrared LED

Features:

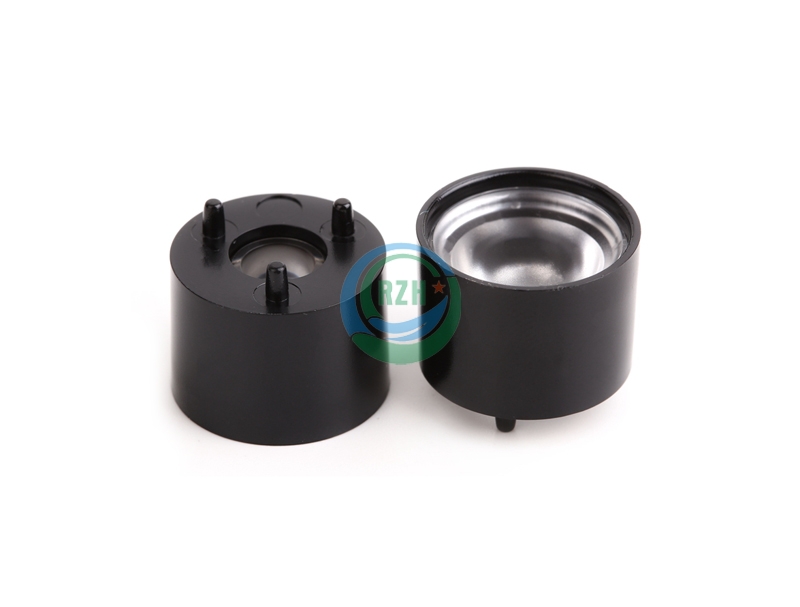

1. Product description: The surface is concave, and the words 8MM are engraved on both sides of the edge. The engraved millimeters make the product more clearly identifiable, and it is not easy to confuse it when matching.
The three pillars at the bottom are used to locate the matching of LED and lens, and effectively solve the problem of 5050 LED card position;
2. Specially designed for low-power infrared 5050 LED, the utilization rate of the light emitted by the LED can reach more than 90% (3MM light transmittance is 93%);
3. It is professionally designed to match the infrared surveillance lens 4MM, 6MM, 8MM specifications, so that the infrared light spot and the visual range of the surveillance screen are effectively unified.
Vignetting, full surface matte series;
4. All designed for smooth and clean face, compact size, saving internal space, and better matching with 75, 60, and small light boards;
5. The size and angle of the same specification are: 45 degrees, 60 degrees and 90 degrees to choose from;
6. This product adopts high-precision aspherical optical design, imported mold steel, and uses original imported optical acrylic (PMMA) materials from Japan's Mitsubishi to ensure
Sufficient injection molding time, reduce product shrinkage rate, all products have passed SGS certification and ROHS environmental protection.

Application:
Widely used in infrared surveillance products such as infrared array cameras and infrared dome cameras
