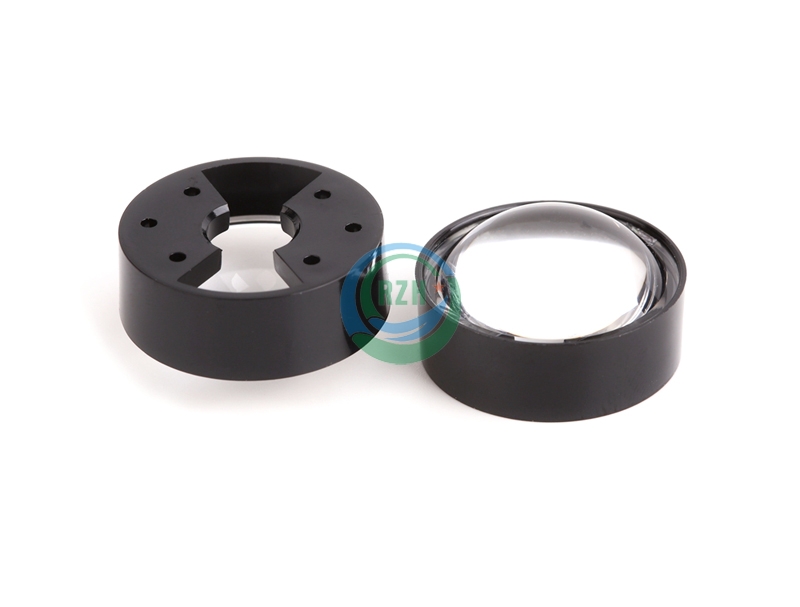

Product description: The surface is smooth and convex, and the bottom is relatively wide
Angle: zoom
Lens diameter: 23MM
Lens height: 8MM
Diameter with bracket: 24.4MM
Height with bracket: 13.9MM
Lens material: optical grade acrylic (PMMA)
Stent material: Polycarbonate (PC)
Temperature resistance: -40-+100 degrees
Suitable for white light, red light, blue light, etc.￠8LED


Features:
1. With the design of total reflection cup lens, the utilization rate of the light emitted by the LED can reach more than 92%;
2. The surface of this lens is flat convex and smooth. Under the condition of ensuring light transmission, the light spot is more uniform and the light collection is cleaner; there are black and white brackets to choose from, generally white ones
The rack can slightly increase the light utilization rate. The rack is made of high temperature resistant PC material. All products are assembled by machines to ensure the tightness of the product;
3. This product adopts high-precision aspherical optical design, Swedish steel mold, and original imported optical materials from Japan's Mitsubishi to ensure sufficient injection molding time and reduce product shrinkage

Rate, all products have passed SGS certification and meet ROHS environmental protection requirements.

Application:
Widely used in: plant lighting, white light lighting, infrared cameras, infrared dome cameras and other finished products.
