RZH-9.8-100 SM XP+HB

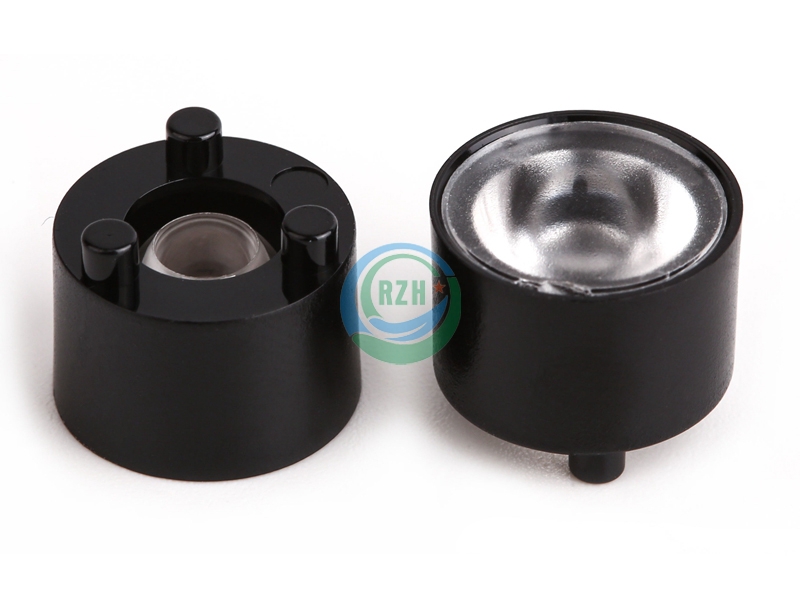

Runzhihui Diameter Angle Sand Surface Black Bracket
Angles of this series: 15 degrees, 30 degrees, 45 degrees, 60 degrees and 90 degrees
The surface of this series are: smooth surface, frosted surface, pearl surface
Angle: 100 degrees Match: 3.6MM lens
With bracket diameter: 10.8MM with bracket height: 7MM
Lens material: optical grade PMMA
Support material: PC material
Temperature resistance: -40-+100 degrees

Applicable infrared LED: 3030, 3535, 3838 and other LEDs

Features:
1. Product description: The surface is frosted;
2. Specially designed for 3535 LED infrared LED, the utilization rate of the light emitted by the LED can reach more than 90% (3MM light transmittance is 93%);
3. It is professionally designed to cooperate with several specifications of the infrared monitoring lens 3.6MM, 6MM and 8MM, so that the infrared light spot and the visual range of the monitoring screen are effectively unified without vignetting.
Each specification has two specifications, transparent and frosted. The transparent light transmittance is higher, and the frosted makes the light spot more uniform. Customers can choose according to actual needs;
4. The size and angle of the same specification are: 15 degrees, 30 degrees, 45 degrees, 60 degrees, and 90 degrees to choose from;
5. This product adopts high-precision aspheric optical design, imported mold steel, and uses Japanese Mitsubishi original imported optical acrylic (PMMA) raw materials to ensure sufficient injection molding

Time, reduce product shrinkage rate, all products have passed SGS certification and ROHS environmental protection requirements.

Application: Widely used in infrared surveillance products such as infrared array cameras and infrared dome cameras
